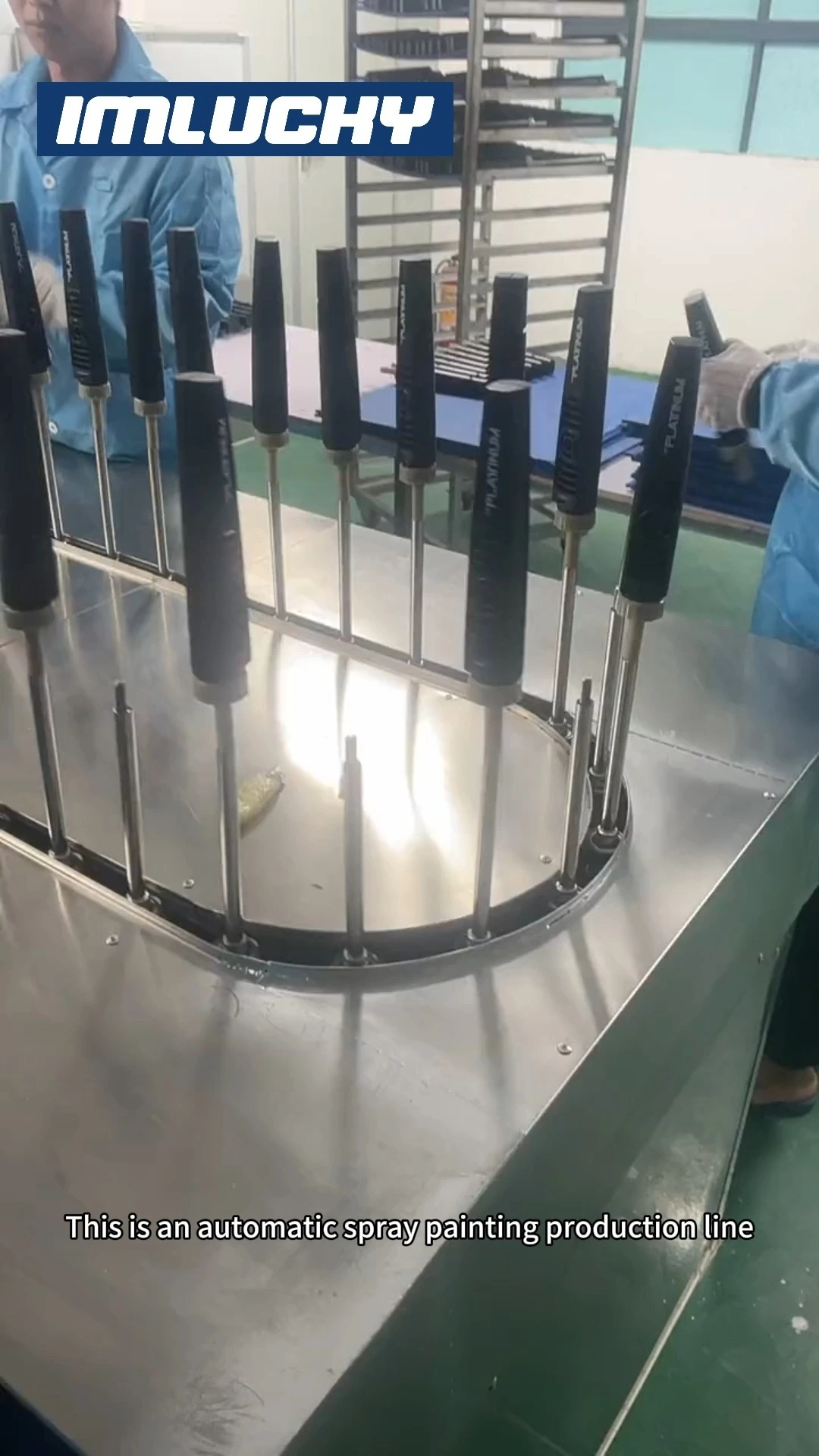

Automatic Metal Spraying Machine With Oven And Remove Dust
This solution is specifically designed for the efficient mass production of hardware parts. With its three core advantages—absolute product adaptability, automation, and energy efficiency—it helps companies improve coating capacity and quality while reducing overall costs:
1. Highly adaptable to product production, compatible with multiple product specifications: This equipment can be highly adapted to coating needs. Whether it's large-volume, single-product production or small-volume, diversified production, simply adjust the corresponding spraying path when spraying different types of products to change the production mode. Moreover, its production efficiency is several times that of manual spraying. Six spray guns can rotate forward and backward, covering areas that reciprocating machines cannot reach. Suitable for mass production scenarios in multiple industries such as furniture, hardware, and plastics.
2. Standardized integrated production line, achieving fully unmanned parts transportation, improving efficiency, and realizing fully automated production from workpiece pretreatment to finished product coating and curing. No manual intervention is required during parts spraying, avoiding problems such as complex processes, slow efficiency, and delayed delivery times, significantly saving costs, shortening production cycles, and making coating operations more precise, efficient, and stable.
3. Paint Recycling Function: Greener, More Economical, and More Environmentally Friendly: The machine is equipped with a professional integrated water curtain cabinet for deodorization and adsorption of excess paint mist, or a cyclone spray cabinet can be replaced. A professional paint recycling system can be selected to collect, filter, and reuse excess paint that did not adhere during the spraying process, significantly reducing paint waste and raw material costs.
Automatic Metal Spraying Machine With Oven And Remove Dust
The 38m mini continuous drying line for spray painting is an effective combination of human and machine capabilities. It integrates conveyor systems, fixtures, spraying devices, and testing equipment to effectively reduce costs and improve spraying efficiency. It is ideal for high-volume production of workpieces, as automated spraying and drying is most suitable. With precise tracks, the line operates smoothly and at a uniform speed without vibration. It is applicable to spraying toys, handicrafts, bamboo and wood products, cosmetic bottles, thermos cups, and other similar products.
Applicable scenarios
Automated coating line for Hardware: chain conveyor and sensor-based dust removal enable on-time delivery of single, large-volume products.
1、Machine Specifications
The core PLC control system of this machine is independently developed and can be flexibly upgraded. Spray guns and oil pumps can be equipped with brands such as Iwata and Graco, and a 505-type rotary spraying fixture is standard. The integrated water curtain cabinet absorbs excess paint mist, the cyclone spray cabinet absorbs excess paint odor, and the drain outlet uses double-layer filtration to ensure clean water quality. The entire machine frame is made of welded SUS square tubing, and the end panels are made of bent SUS sheet metal.
2、Machine Details
The body of this automatic spraying production line is made of stainless steel, with a design speed adjustable at 8000mm/min and a chain pitch of 50.8mm. It can spray products with a maximum diameter of 125mm and achieve direct baking after spraying at an oven temperature of 100 ℃. Specifically designed for single-piece and batch spray painting of small, precision workpieces such as toys, handicrafts, bamboo and wood products, cosmetic bottles, reducing paint waste by 40%.
3. Real Results for Your Business (The Value)
Uninterrupted Productivity: Eliminate downtime caused by manual handling and reprogramming. Achieve a true "batch-size-one" automated workflow.
Superior Surface Integrity: By removing human handling between coats, you eliminate the risk of surface contamination and physical damage.
Significant ROI: Reduce your labor force by 60-80% while increasing your daily output. The high-precision system also reduces paint waste by up to 30%.
.
