Automatic Spray Painting Line - for Plastic Parts
This solution is specifically designed for the efficient mass production of plastic parts. With its three core advantages—absolute product adaptability, automation, and energy efficiency—it helps companies improve coating capacity and quality while reducing overall costs:
1. Highly Matched to Product Production, Compatible with Multiple Product Specifications:This equipment can highly match coating needs, achieving production efficiency several times that of manual spraying. Equipped with a flexible adaptation system, it can be remotely upgraded and optimized, easily handling different types and quantities of products. No equipment replacement is required; the flexible system can store hundreds of spraying paths, which can be automatically recalled when needed, ensuring continuous mass production. Suitable for mass production scenarios in multiple industries such as furniture, hardware, and plastics.
2. Customized Integrated Production Line, Achieving Fully Unmanned Parts Transportation and Improving Efficiency:It supports customized integrated production lines for dust removal, drying, and coating, achieving fully automated production from workpiece pretreatment to finished product coating and curing. No manual intervention is required during parts spraying, avoiding problems such as recruitment difficulties, personnel management, paint waste, and frequent rework, significantly saving costs, shortening production cycles, and making coating operations more precise, efficient, and stable.
3. Paint Recycling Function: Greener, More Economical, and More Environmentally Friendly:A professional paint recycling system can be selected to collect, filter, and reuse excess paint that has not adhered during the spraying process, significantly reducing paint waste and raw material costs. At the same time, it reduces paint waste emissions, meeting green production standards and helping companies achieve both economic and environmental benefits.
Automatic Spray Painting Line for Plastic

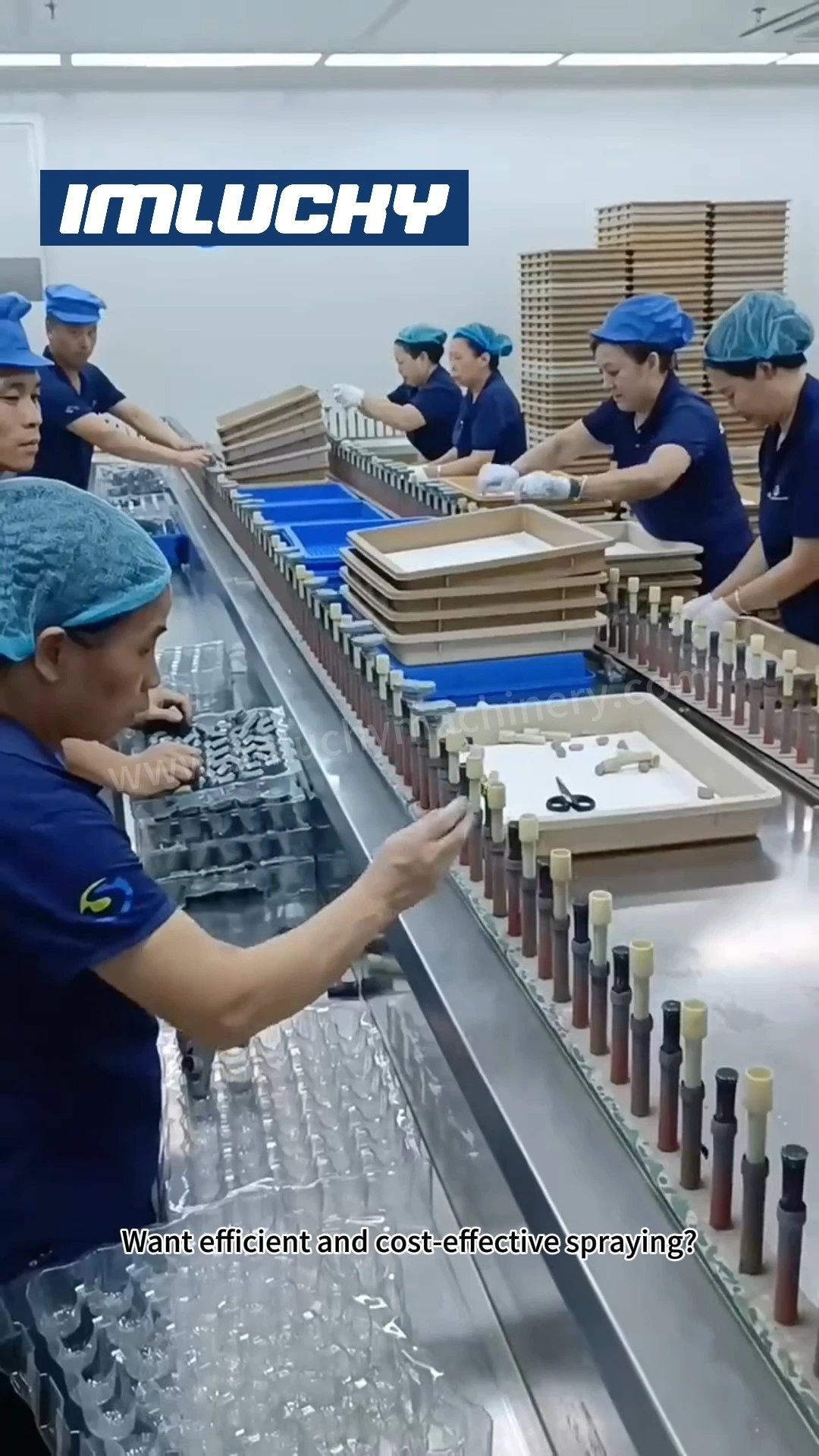

Our fully automated spray painting line achieves completely unmanned operation. From dust removal to spraying and baking, everything is completed by chain conveyors. This avoids the risk of workers being contaminated by falling dust during handover, which could affect the final result. It also prevents delays and rework caused by inconsistencies in the finished product due to manual spraying. Automated spray painting lines are ideal for high-volume, single-product production, ensuring consistent product quality while improving efficiency and enabling faster production completion. Let your production process reach a new standard of full automation!
Applicable scenarios
Automated coating line for plastic parts: chain conveyor and sensor-based dust removal enable on-time delivery of single, large-volume products.
1、Machine Specifications
The machine's core PLC control system is independently developed and can be equipped with flexible upgrade components. Spray guns and oil pumps can be selected from brand-name spray guns, and it comes standard with 505 rotary spray jigs. An integrated water curtain cabinet absorbs excess paint mist, and the drain outlet has a double-layer filter to ensure clean water. The air pressure regulating valve and leakage protection device are from well-known brands.
2、Machine Details
The body of this automatic spraying production line is made of stainless steel, with a design speed adjustable at 8000mm/min and a chain pitch of 50.8mm. It can spray products with a maximum diameter of 125mm and achieve direct baking after spraying at an oven temperature of 100 ℃. Specially designed for single and large-scale spraying of small precision workpieces such as 3C electronics, glass, water bottles, daily necessities, and home appliance accessories, reducing paint waste by 40%.
3. Real Results for Your Business (The Value)
Uninterrupted Productivity: Eliminate downtime caused by manual handling and reprogramming. Achieve a true "batch-size-one" automated workflow.
Superior Surface Integrity: By removing human handling between coats, you eliminate the risk of surface contamination and physical damage.
Significant ROI: Reduce your labor force by 60-80% while increasing your daily output. The high-precision system also reduces paint waste by up to 30%.
.
