Automatic Spray Coating Machine for Irregular Shapes
Precisely and efficiently solve your surface treatment problems.
**6-Axis Collaborative Spraying:** The automatic spraying machine features 6-axis collaborative PCL control, enabling spraying even in hard-to-reach areas (grooves, deep recesses).
**Store Spraying Paths:** The machine can memorize up to 500 spraying paths, meaning one machine can spray various different products; simply recall the path with a single button during spraying.
**Stainless Steel Body:** The entire machine body is welded from stainless steel, making it durable, easy to maintain, and aesthetically pleasing.
**Environmentally Friendly:** The water curtain cabinet absorbs most of the paint mist exposed to the air, reducing VOC emissions, purifying the workshop environment, and lowering the risk of occupational diseases for workers.
**Return on Investment:** One machine can replace 4-6 skilled spraying workers, reducing labor costs. Machine-planned routes reduce paint waste, and orders can be taken out during off-seasons.

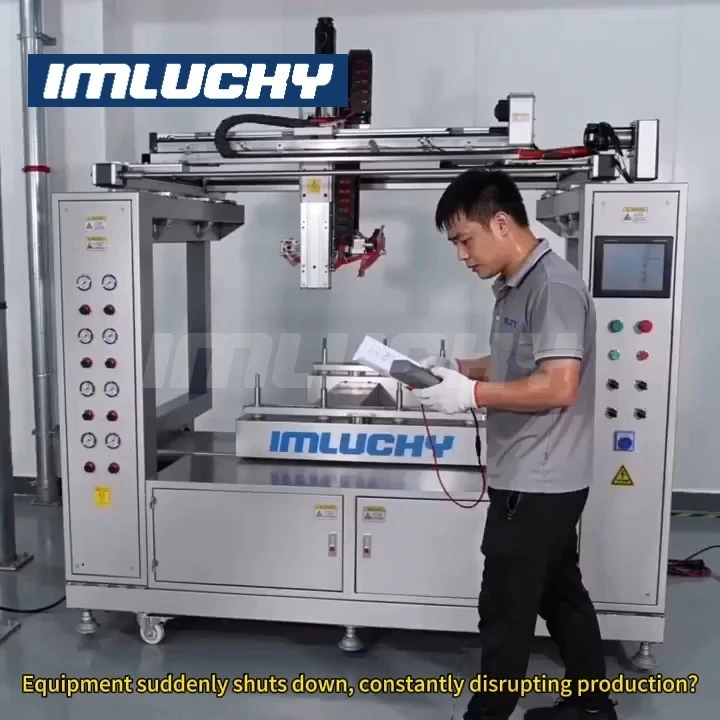

Automatic 6-axis Painting Machine
Our 6-axis automated spray painting machine achieves "one machine, multiple spraying" capabilities. It can handle complex plastic casings and metal parts, as well as military-grade workpieces and food-grade tableware requiring precise coating, improving quality rather than quantity. Similarly, the machine can be equipped with automatic loading and unloading, not only increasing efficiency but also fostering trust and deeper cooperation with customers through mechanized operation. It also avoids delays and rework caused by inconsistent product quality resulting from manual spraying. Automated spray painting production lines are ideal for high-volume, single-product production.
Applicable scenarios
Automated coating line for plastic parts: chain conveyor and sensor-based dust removal enable on-time delivery of single, large-volume products.
1、Machine Specifications
This semi-enclosed water curtain cabinet measures 4200*2600*2600 mm. The main body is constructed from 1.0mm thick 304 stainless steel. The drainage system uses a circulating water system, with the main pipe being a 2-inch PVC pipe and branch pipes being 1.1/4 inch PVC pipes. It features a double-layer filter frame. The machine body, welded from stainless steel square tubing, measures 35800*2400*2600 mm. The stainless steel base includes an independent water collection tray, reducing paint contamination and facilitating maintenance and cleaning.
2、Machine Details
The 6-axis automatic spraying machine is equipped with 10 spray guns and special spray guns. Five spray guns in five stations can spray simultaneously. The spray guns are factory-developed, dual-air-pipe automatic special spray guns with a nozzle diameter of 1.0mm. The rotating unit uses a frequency converter and is equipped with a large splitter and a 180-degree rotation mechanism. The spraying thickness is adjustable from 30-50um, with a maximum spraying thickness of 330mm diameter and 350mm thickness. Five sets of workpieces can be sprayed simultaneously, with a distance of 350mm between the workpieces.
3. Real Results for Your Business (The Value)
Uninterrupted Productivity: Eliminate downtime caused by manual handling and reprogramming. Achieve a true "batch-size-one" automated workflow.
Superior Surface Integrity: By removing human handling between coats, you eliminate the risk of surface contamination and physical damage.
Significant ROI: Reduce your labor force by 60-80% while increasing your daily output. The high-precision system also reduces paint waste by up to 30%.
.
FAQ
Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.
