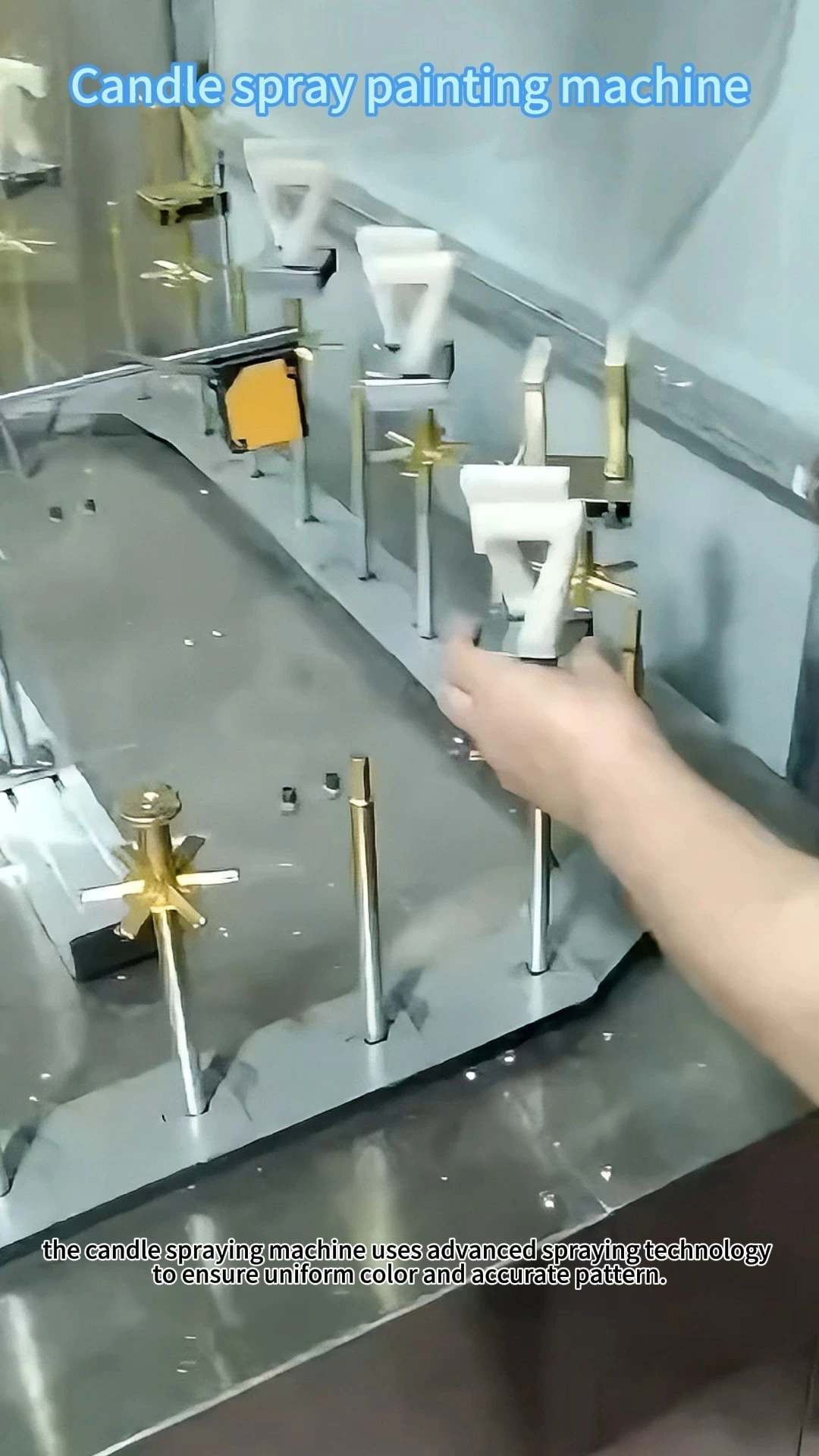

Automatic spraying painting line for plastic parts or candle
The core objective of this equipment is to solve the challenges of large-volume, single-product, and simple item painting. Its efficiency, cost reduction, and environmental friendliness help companies improve coating capacity and quality, reduce overall costs, and, when combined with wastewater and exhaust gas systems, directly discharge wastewater and exhaust gas.
1. Efficiency: Nine fixed automatic spray guns spray simultaneously, handling both forward and reverse rotation with a single machine. This not only increases efficiency but also reduces dead zones, resulting in more even spraying and less rework. One machine can operate 24/7, with a maximum linear speed of 5m/min.
2. Cost Reduction: The machine replaces manual spraying, reducing the labor costs associated with skilled sprayers. The machine's pre-programmed spraying process minimizes paint waste and reduces paint costs. The machine can accept orders during the factory's off-season, reducing economic losses from downtime.
3. Environmental Protection: The equipment includes a built-in water curtain cabinet to absorb excess paint mist. Alternatively, a professional paint recycling system can be selected to collect, filter, and reuse excess paint that has not adhered during the spraying process, thereby reducing paint waste. This also reduces paint waste emissions, meeting green production standards.
Automatic Spray Painting Line
Our automated spray painting production line achieves semi-unmanned operation. From dust removal to spraying, all processes are completed by chain conveyors. This means that some quick-drying or air-drying paints can be sprayed on the machines without human intervention. At the same time, machine spraying avoids delays and rework caused by inconsistent finished product quality resulting from manual spraying. Automated spray painting production lines are ideal for high-volume, single-product production. They not only ensure consistent product quality but also improve production efficiency and speed. Take your production process to a new level of full automation!
Applicable scenarios
Automated coating line for plastic parts: chain conveyor and sensor-based dust removal enable on-time delivery of single, large-volume products.
1、Machine Specifications
The machine's chain speed is adjustable at 5m/min, with a total chain length of 11m and a chain pitch of 50.8mm. Custom sizes are also available for sizes exceeding the maximum. The frame and sheet metal are welded from stainless steel, ensuring durability. The voltage is standard 380V, 50HZ. The sprocket diameter is 180mm, and the pitch is 101.6mm.
2、Machine Details
The machine has a total power of 5KW, an air supply of 0.5-0.7Mpa, and a total conveyor chain length of 11.07m. It comes with 109 primary jigs. The entire machine frame is constructed from welded SUS square tubing, and the end plates are bent from SUS sheet metal. It is specifically designed for single-piece and batch painting of small, precision workpieces such as 3C electronic products, glassware, water bottles, daily necessities, and home appliance parts, reducing paint waste by 40%.
3. Real Results for Your Business (The Value)
Uninterrupted Productivity: Eliminate downtime caused by manual handling and reprogramming. Achieve a true "batch-size-one" automated workflow.
Superior Surface Integrity: By removing human handling between coats, you eliminate the risk of surface contamination and physical damage.
Significant ROI: Reduce your labor force by 60-80% while increasing your daily output. The high-precision system also reduces paint waste by up to 30%.
.
