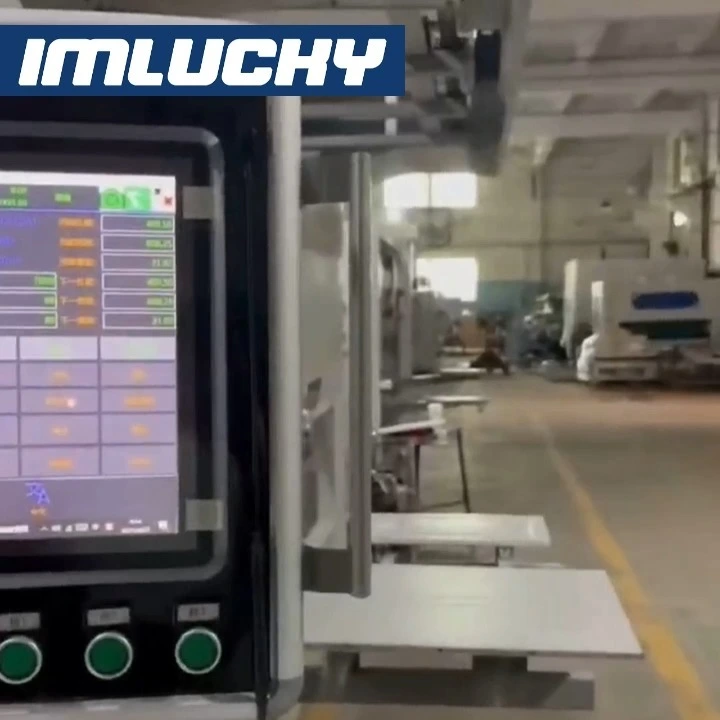

High-Efficiency 5-Axis CNC Spray Painting Machine for Wood Doors /3D Scanning & Auto-Flipping
Tailor-made for small-batch wooden furniture production, this system efficiently adapts to diverse scenarios, unlocking a new spraying experience:
1. Precisely Adaptable to Small-Batch Wooden Furniture, Comprehensive Scenarios
Perfectly matches the spraying needs of small-batch wooden furniture such as doors, cabinets, and boards, allowing operation to begin without large-scale production lines. The equipment is highly flexible, quickly switching between different types and specifications of wooden workpieces, eliminating the batch limitations of traditional spraying equipment, lowering the barrier to entry and improving efficiency for small-batch production.
2. Automatic Flip-Over Spraying for Wooden Doors, Reducing Labor Costs
Specifically optimized for wooden door spraying scenarios, it features an automatic flip-over function. No manual intervention is required during the spraying process to achieve uniform spraying on both sides of the wooden door. This not only avoids coating damage and contamination caused by manual flipping but also significantly reduces labor input, improving spraying consistency and production efficiency.
3. Optional 3D Scanning Function for Rapid Spraying of Small-Sized Workpieces
An optional 3D scanning module is available for small-sized wooden workpieces, eliminating the need for cumbersome size parameter settings within the system. The equipment can quickly and accurately identify the outline and size of the workpiece through 3D scanning, automatically match the optimal spraying path, realize immediate spraying, greatly shorten the preparation time, and improve the spraying efficiency and accuracy of small workpieces.
5-Axis Intelligent Woodworking Sprayer
Achieve true "Unmanned Operation" with our 5-axis sprayer. It features an Integrated Auto-Flip system that handles double-sided door painting without human touch, eliminating manual labor and surface damage. The Optional 3D Scanning detects cabinet panel dimensions in real-time for instant "Scan & Spray" functionality—no programming required. Perfect for small-batch custom orders, this system ensures 100% coverage on complex profiles while reducing paint waste by 30%. Elevate your production to a fully automated, high-precision workflow.
Case Showcase – See Our Successful Projects
5-Axis Intelligent Woodworking Sprayer: Automatic Flipping & 3D Scanning for Hands-Free Door & Cabinet Coating
1. Industry Challenges (The Pain Points)
The Manual Flipping Bottleneck: Flipping doors manually is slow and risks damaging the wet paint surface with fingerprints or scratches.
Complex Programming Hurdles: High-end custom cabinets with intricate 3D designs often force machines to idle while operators spend hours on new programs.
Inconsistent Edge Finishing: It is difficult to maintain the same coating quality on the edges and flip-side when using manual intervention or basic automation.
2 Our Specialized Solution (The Innovation)
Integrated Auto-Flip System: Our machine automatically flips the door/panel during the cycle. This allows for double-sided spraying in one continuous process without any human touch.
Optional 3D Laser Scanning: The system "sees" the object. It automatically detects dimensions and 3D contours, generating the optimal spray path instantly for any shape.
5-Axis Synchronized Movement: The spray head tracks the 3D data to maintain a constant distance and angle, ensuring perfect coverage in deep carvings and narrow edges.
3. Real Results for Your Business (The Value)
Uninterrupted Productivity: Eliminate downtime caused by manual handling and reprogramming. Achieve a true "batch-size-one" automated workflow.
Superior Surface Integrity: By removing human handling between coats, you eliminate the risk of surface contamination and physical damage.
Significant ROI: Reduce your labor force by 60-80% while increasing your daily output. The high-precision system also reduces paint waste by up to 30%.
.
Experience: 20 Years in Surface Finishing.
Proven Track Record: 1,000+ Case Studies (Residential Doors, Cabinet Doors, Fire Doors).
Service: Global Door-to-Door Installation & Lifetime Technical Support.
