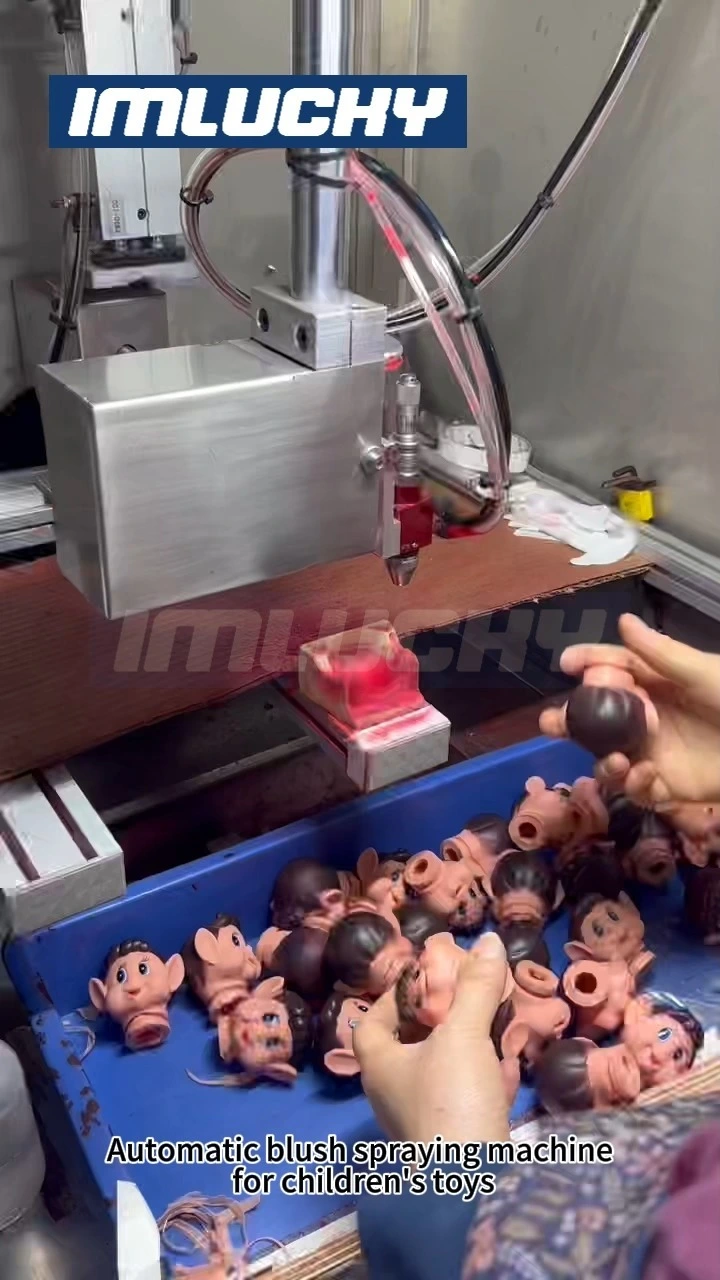

Fully automatic blind box toy spot spraying machine for efficient production with two workstations
This fully automated, dual-station blush spraying machine, designed specifically for children's toy and mainstream blind box manufacturers, delivers consistent coating quality, reduces labor costs, and significantly improves production efficiency.
Whether you face challenges such as inconsistent manual spraying, significant paint waste, or rising labor costs, this system provides a reliable and scalable solution for modern toy spot coating production lines.
Why Choose 5-axis machine？
- Dual-station continuous automatic spraying system
- Up to 2000 blind box face coatings per hour
- Reduces labor costs by 70%
- Improves finished product uniformity and surface smoothness
- Saves 30% on paint consumption
- Compatible with PU, UV, and water-based coatings
- PLC intelligent control for stable operation
This spray painting machine is designed specifically for blind boxes, toys, and other products that require detailed, targeted spraying to improve efficiency, consistency, and production scale.
Achieve Consistent Quality and Scale Your Production with Imluchy’s Turnkey Finishing Systems.
By adopting this fully automated blind box toy painting machine, manufacturers can:
- Increase production capacity by 2 times
- Reduce reliance on skilled painters; one general worker can operate the machine.
- Improve product quality consistency and increase the yield rate of high-quality products.
- Reduce long-term operating costs.
- Achieve a faster return on investment.
Equipment Functions
This system employs a rotary electric turntable with two workstations. While station A is spraying, station B handles material loading and unloading, achieving continuous automated spraying.
The entire system is constructed of stainless steel for durability. It features four-axis linkage, allowing for forward, backward, left, and right movement. Adjustment is simple and requires no specialized technicians. Only manual loading is needed, resulting in high spraying efficiency.
This blush spraying machine is widely used for:
5-axis automatic spray coating machine (QH-5X-3D)
- Mainstream blind box face and body partial spraying manufacturing
- Children's toy (toy cars, toys) spraying production
- Partial decorative spraying of 3C electronic products
- Spraying of ABS/PC plastic toys
Technical Highlights
Voltage: 380V, 50Hz
Air Pressure: 0.5-0.7MPa
Accuracy: Repeatability ±0.5MM
Spray Guns: 2 x 1.3mm high atomization nozzles with fine-tuning
Frame: SUS201-40/50 T1.2 square tubing welded
Water Circulation: 0.25KW
Drain Port: 1.5-inch ball valve
X, Y, Z, R Axis Motors: 86 Radsen stepper motors
Photoelectric Atomizer: Omron photoelectric atomizer
Manual Spraying vs Automatic Coating Machine
|
|
Manual Spraying |
|
|
Feature |
Manual | Automatic |
|
Consistency |
Low: Inconsistent finished product results due to variations in worker skill and condition | PLC control ensures consistent results within the same batch |
|
Efficiency |
Medium: Manual spraying leads to fatigue | High: Machines can operate 24/7 |
|
Labor Cost |
High: Skilled painters are scarce and their wages are significantly higher than machine costs | Low: Automated production allows for cost recovery in as little as three months |
|
Paint Costs |
High: Easily affected by worker skill level | Low: Computer-planned optimal paths, can be combined with a paint recycling system, saving up to 50% on paint |
We offer customized solutions based on your production needs:
- Production line layout design
- Coating configuration adjustment
- Integration with drying ovens or curing systems
- Factory space optimization
FAQ
Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.
