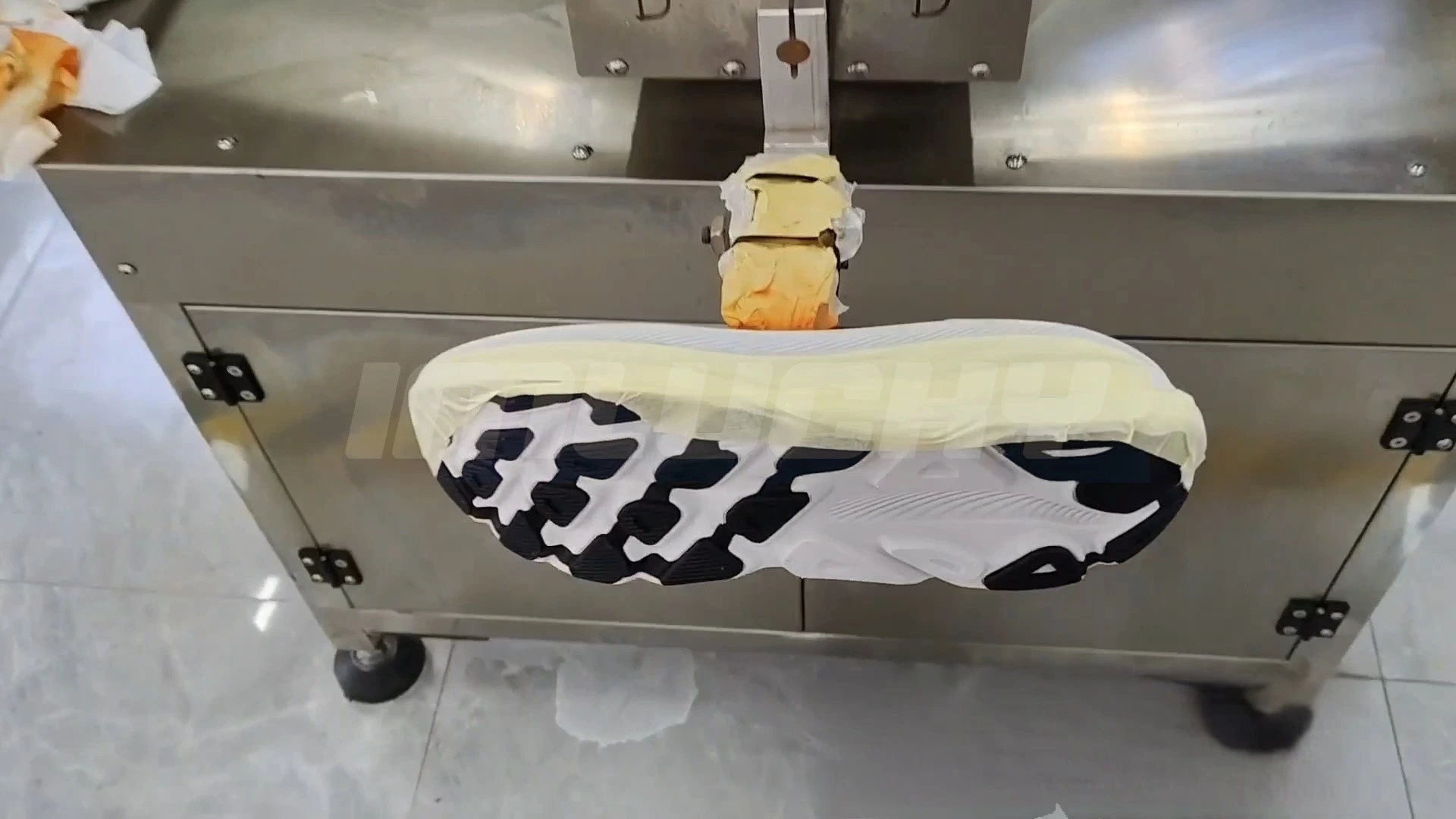

Automatic three-color gradient spraying machine for shoe soles
Still struggling with the need for consistent, high-quality coatings in mass production?
The IMLUCHY six-axis automatic spray painting machine with integrated film washing function is specifically designed for various industries such as shoe soles, plastics, and electronics that require timed film washing, perfectly solving all your problems. Simply set the number of spray cycles for film washing, and after the painting process is complete, the film washing indicator light will illuminate, the fixture will rotate to the film washing cabinet, and the automatic film washing program will begin. This achieves simultaneous spraying and washing, solving film washing problems and making painting simpler.
Say Goodbye to the Hassle of Frequent Film Cleaning Leading to Downtime and Production Delays
Spray painting shoe soles, plastics, and electronic products is an extremely challenging task:
- The film clamping fixture requires frequent cleaning, causing downtime.
- Product consistency is crucial; manual work is insufficient to achieve identical results, making it highly dependent on skilled painters.
- Three-color or even multi-color painting requires a rapid color change system, the cost of which is prohibitive for small and medium-sized factories.
This 6-axis integrated coating and washing machine provides precise, automated coating for mass-produced products requiring high consistency, thereby improving efficiency, consistency, and production scale.
Achieve Consistent Quality and Scale Your Production with IMLUCKY’s Turnkey Finishing Systems.
Our Solution: 6-Axis Integrated Washing and Spraying Machine
This advanced fully automatic spraying machine aims to:
- Achieve rapid cleaning and automatic spraying through automated film washing, improving product efficiency.
- Ensure consistent spraying results through PLC control.
- The machine can be equipped with multiple oil pumps; only the desired color needs to be applied, enabling rapid color changes and gradient effects.
Why Choose 6-axis machine？
The dual-station mold washing integrated machine changes the traditional painting method. The number of paint spraying cycles is set, and after the painting work is completed, the mold washing indicator light illuminates, the fixture rotates to the mold washing cabinet, and the automatic mold washing program begins. This achieves simultaneous spraying and washing, solving the mold washing problem and making painting simpler.
Applications:
This six-axis mold washing and spraying machine is suitable for any product requiring timed mold washing and high consistency of finished products:
• Mainstream blind box blush and eyeshadow spraying
• Gradient and multi-color spraying of shoe soles
• Partial application of toys
• Consumer electronics casings
Technical Highlights
Voltage: 380V, 50Hz
Air Pressure: 0.5-0.7MPa
Accuracy: Repeat positioning accuracy ±0.5MM
Spray Gun: 1.3 caliber high atomization, finely adjustable
Machine Frame: SUS201-40/50 T1.2 square tubing welded
Water Circulation: 0.25KW
Drainage Outlet: 1.5-inch ball valve
CNC System: Kunlun screen
Optoelectronic Atomizer: Omron optoelectronics
Manual Spraying vs Automatic Coating Machine
|
|
Manual Spraying |
|
|
Feature |
Manual | Automatic |
|
Consistency |
Low: Inconsistent finished product results due to variations in worker skill and condition | PLC control ensures consistent results within the same batch |
|
Efficiency |
Medium: Manual spraying leads to fatigue | High: Machines can operate 24/7 |
|
Labor Cost |
High: Skilled painters are scarce and their wages are significantly higher than machine costs | Low: Automated production allows for cost recovery in as little as three months |
|
Paint Costs |
High: Easily affected by worker skill level | Low: Computer-planned optimal paths, can be combined with a paint recycling system, saving up to 50% on paint |
Ready to Automate Your Coating Process?
Get a Free Layout Design & Cost Analysis.
Don't let finishing be your bottleneck. Contact our engineers today for a customized solution.
FAQ
Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.
