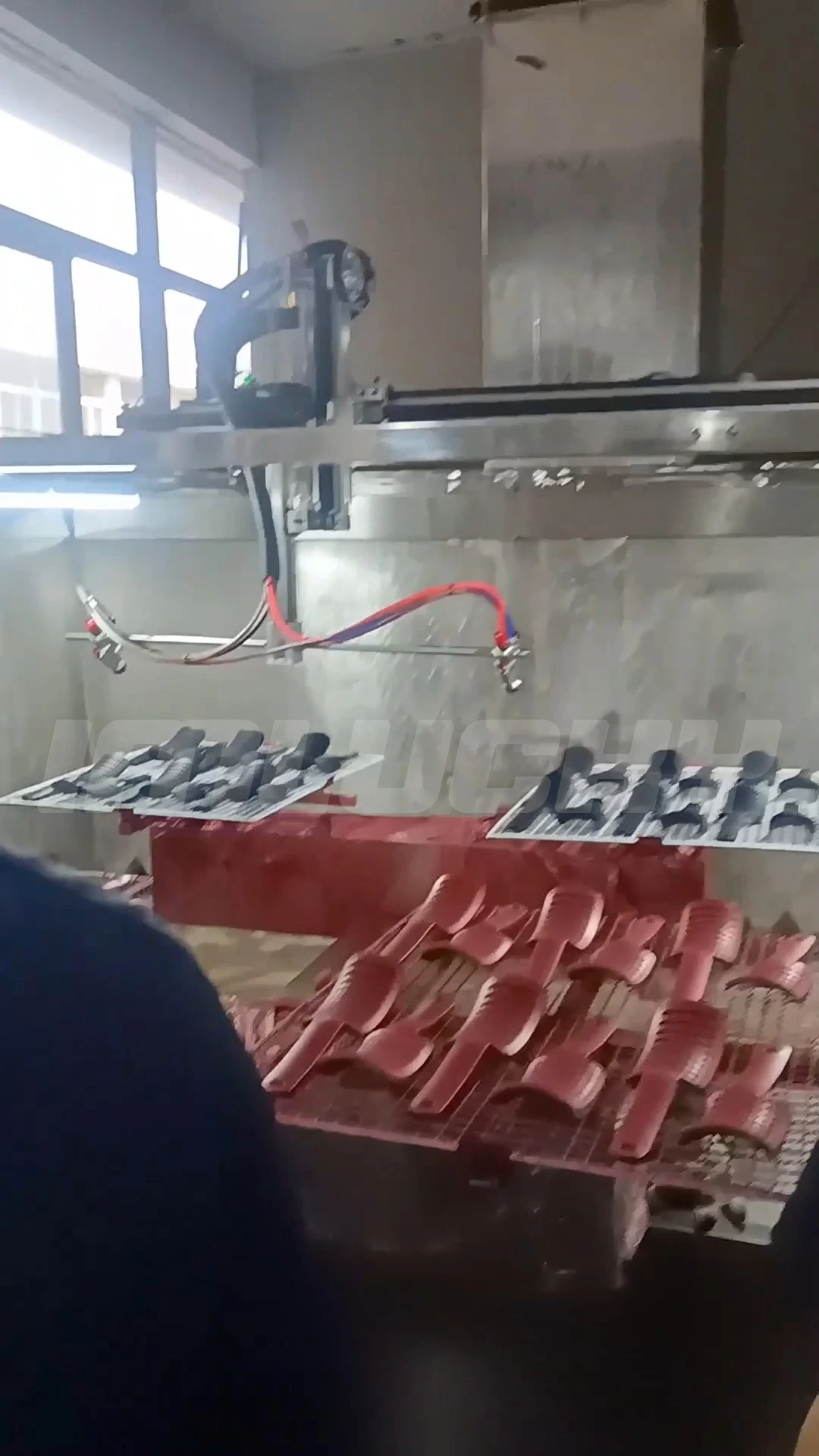

Automatic comb spraying machine has 4 stations.
Still struggling with the stability and consistency of coating quality in mass production?
The IMLUCHY six-axis reciprocating four-station fully automatic spray painting machine is designed for spraying complex workpieces such as air conditioner casings, wooden furniture, household appliances, automotive parts, and toys, perfectly solving all your problems. Made of new stainless steel, it is durable. Manual loading and unloading are all that's needed, improving spraying efficiency. The dual-gun, four-station design effectively saves significant labor costs.
Say goodbye to the worries of production not keeping up with demand for complex, high-volume products.
Painting large quantities of complex-shaped products, such as air conditioner casings and household appliances, is an extremely challenging task:
- Complex shapes result in numerous hard-to-reach areas.
- High defect rates lead to repeated rework and extremely low efficiency.
- High reliance on skilled painters.
- Complex parts require meticulous painting, but excessive rework rates result in late deliveries.
This 6-axis, four-station automatic spray coating machine provides precise, automated coating for a variety of complex products, thereby improving efficiency, consistency, and production scale.
Achieve Consistent Quality and Scale Your Production with Imluchy’s Turnkey Finishing Systems.
Our Solution: 6-Axis Fully Automatic Spray Painting Machine, 4 Stations and Electric Turntable
- Features A and B stations. While station A is spraying, station B can simultaneously handle loading and unloading, saving half the spraying time.
- PLC touchscreen control, simple setup, even for those with different professional backgrounds.
Why Choose 6-axis machine？
1. PLC computer control ensures highly consistent product coating results, reducing paint and time wasted on rework.
2. The four-station planar spraying system allows for a maximum travel of 900mm. Large products can be coated precisely, and complex workpieces can be sprayed simultaneously, with multiple pieces coated at once.
3. Machinery and automation are the future trend; early adoption of automation allows for faster integration with the world and the establishment of a strong corporate image.
Applications:
This six-axis, four-station automatic spray painting machine is suitable for any product requiring complex surface finishes and mass production.
• Air conditioner housings, household appliance housings, and other everyday consumer goods housings
• Wooden furniture
• Spot coating for toys
• Housings for consumer electronics products
Technical Highlights
Technical Parameters
Voltage: 220V, 50Hz
Air Pressure: 0.5-0.7MPa
Accuracy: Repeatability ±0.1MM
Spray Gun: 1.5mm nozzle diameter, excellent atomization, finely adjustable
Frame: SUS201-40/50 T1.2 square tubing welded
Water Circulation: 1.1KW
Drain Port: 2-inch ball valve
X, Y, Z, R Axis Motors: 86 Leadshine stepper motors
Photoelectric Atomizer: Omron photoelectric atomizer
Manual Spraying vs Automatic Coating Machine
|
|
Manual Spraying |
|
|
Feature |
Manual | Automatic |
|
Consistency |
Low: Inconsistent finished product results due to variations in worker skill and condition | PLC control ensures consistent results within the same batch |
|
Efficiency |
Medium: Manual spraying leads to fatigue | High: Machines can operate 24/7 |
|
Labor Cost |
High: Skilled painters are scarce and their wages are significantly higher than machine costs | Low: Automated production allows for cost recovery in as little as three months |
|
Paint Costs |
High: Easily affected by worker skill level | Low: Computer-planned optimal paths, can be combined with a paint recycling system, saving up to 50% on paint |
Ready to Automate Your Coating Process?
Get a Free Layout Design & Cost Analysis.
Don't let finishing be your bottleneck. Contact our engineers today for a customized solution.
FAQ
Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.
