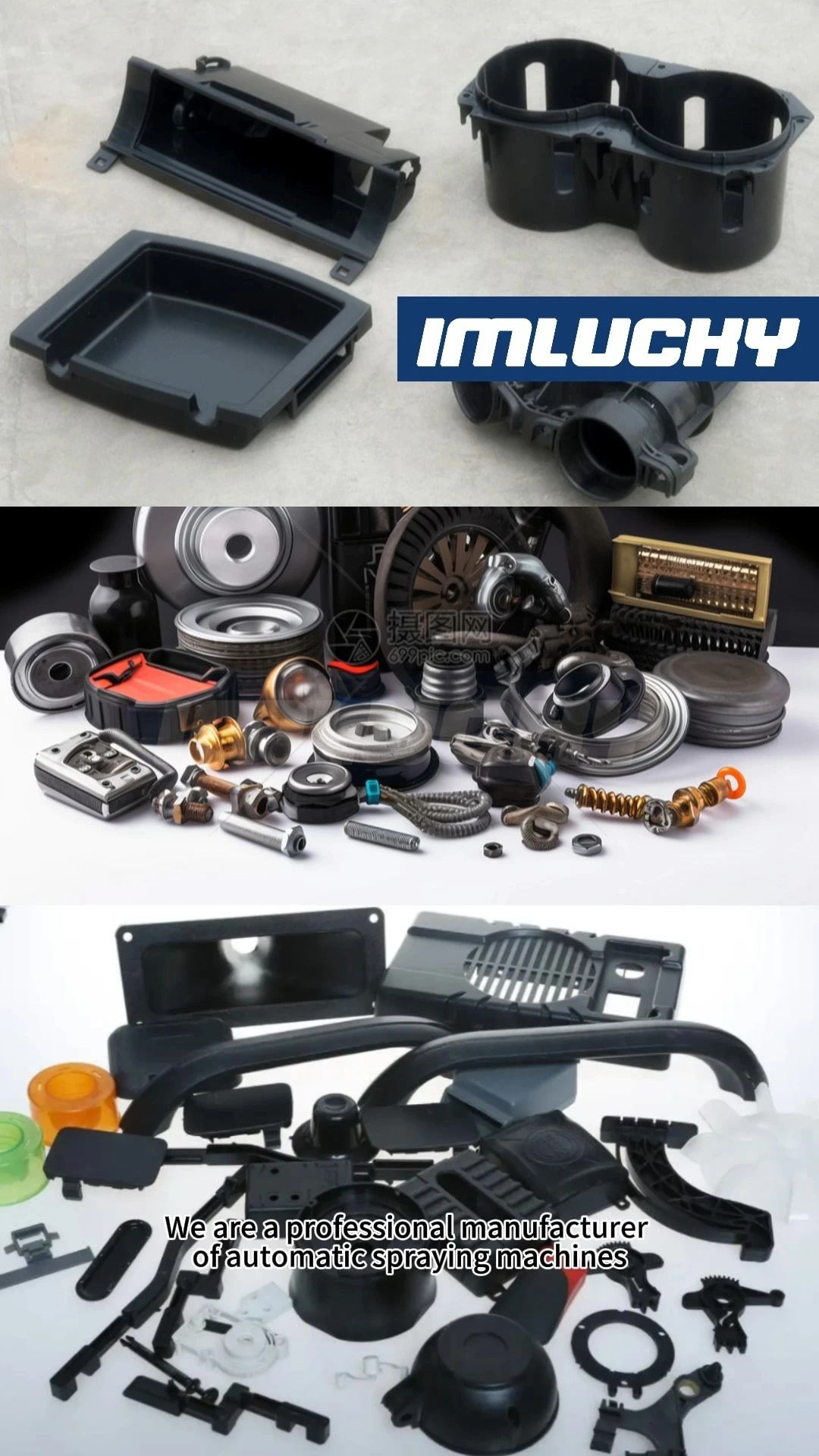

Automatic 5-axis painting machine for auto parts
This solution is specifically designed for automotive and electric vehicle parts. Leveraging its three core advantages—increased efficiency, reduced costs, and energy conservation—it helps businesses improve coating capacity and quality while lowering overall costs:
1. Increased Efficiency: This equipment can quickly adapt to various coating needs. Whether it's everyday consumer goods, furniture, home décor, automotive parts, or 3C product casings, simply adjust the corresponding spraying path to switch production modes when coating different types of products. The machine can store hundreds of different spraying paths. It can operate 24/7, reducing rework rates and effectively increasing yield rates. It can also accept some external coating orders during off-seasons, minimizing downtime damage to the machine.
2. Reduced Costs: One machine can replace 3-6 painting workers, not only reducing labor costs but also minimizing the differences in experience, condition, and efficiency caused by manual painting, thus reducing rework. Furthermore, the machine is PLC-controlled, and the spraying path is computer-controlled, minimizing paint waste.
3. Environmental friendliness: The equipment is equipped with a professional integrated water curtain cabinet for deodorizing and absorbing excess paint mist, optimizing the spray painting workshop environment and reducing the risk of occupational diseases for workers. In addition, a professional paint recycling system can be optionally installed to collect, filter, and reuse excess paint that has not adhered during the spraying process, significantly reducing paint waste and raw material costs.
Automatic Spray Painting Machine for Auto Parts
Our 5-axis automated painting machine achieves unmanned operation and is specifically designed for automotive and electric vehicle parts. With 5-axis linkage, it can easily handle complex automotive parts as well as components requiring consistent finishes. Equipped with a storable painting path system, this means one machine can paint different products; simply set the actions and recall them when needed. The machine can be combined with an automatic color-changing system and a paint recycling system to reduce downtime and improve paint utilization. Automated painting machines are ideal for high-volume, single-product production, ensuring consistent product quality while increasing production efficiency and speed. Take your production process to a new level of full automation!
Applicable scenarios
Automated coating equipment for automotive parts: A large cyclone paint recycling system combined with wastewater and exhaust gas treatment minimizes environmental impact.
1、Machine Specifications
The spray booth measures 2650*2300*2400mm, paired with a 2850*2800*4000mm water curtain cabinet. It uses 460V, 60Hz AC voltage, but the voltage can be changed according to customer needs to ensure normal machine operation. The main frame is welded from 100*100*5mm stainless steel square tubing, making it sturdy and durable, with a powder-coated surface for a high-end look. The servo motor is an Inovance, protected by a stainless steel shield.
2、Machine Details
The spray gun can be the internationally renowned Iwata brand. Our factory-developed spray gun allows for manual adjustment of atomization, angle, and flow rate. The oil pump is from a well-known Taiwanese brand and is equipped with a stirrer. The connector uses special PE coated tubing and fittings, and the pressure gauge is a Taiwanese Shin Kong pneumatic pressure regulating valve and gauge.
3. Real Results for Your Business (The Value)
Uninterrupted Productivity: Eliminate downtime caused by manual handling and reprogramming. Achieve a true "batch-size-one" automated workflow.
Superior Surface Integrity: By removing human handling between coats, you eliminate the risk of surface contamination and physical damage.
Significant ROI: Reduce your labor force by 60-80% while increasing your daily output. The high-precision system also reduces paint waste by up to 30%.
.
FAQ
Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.
