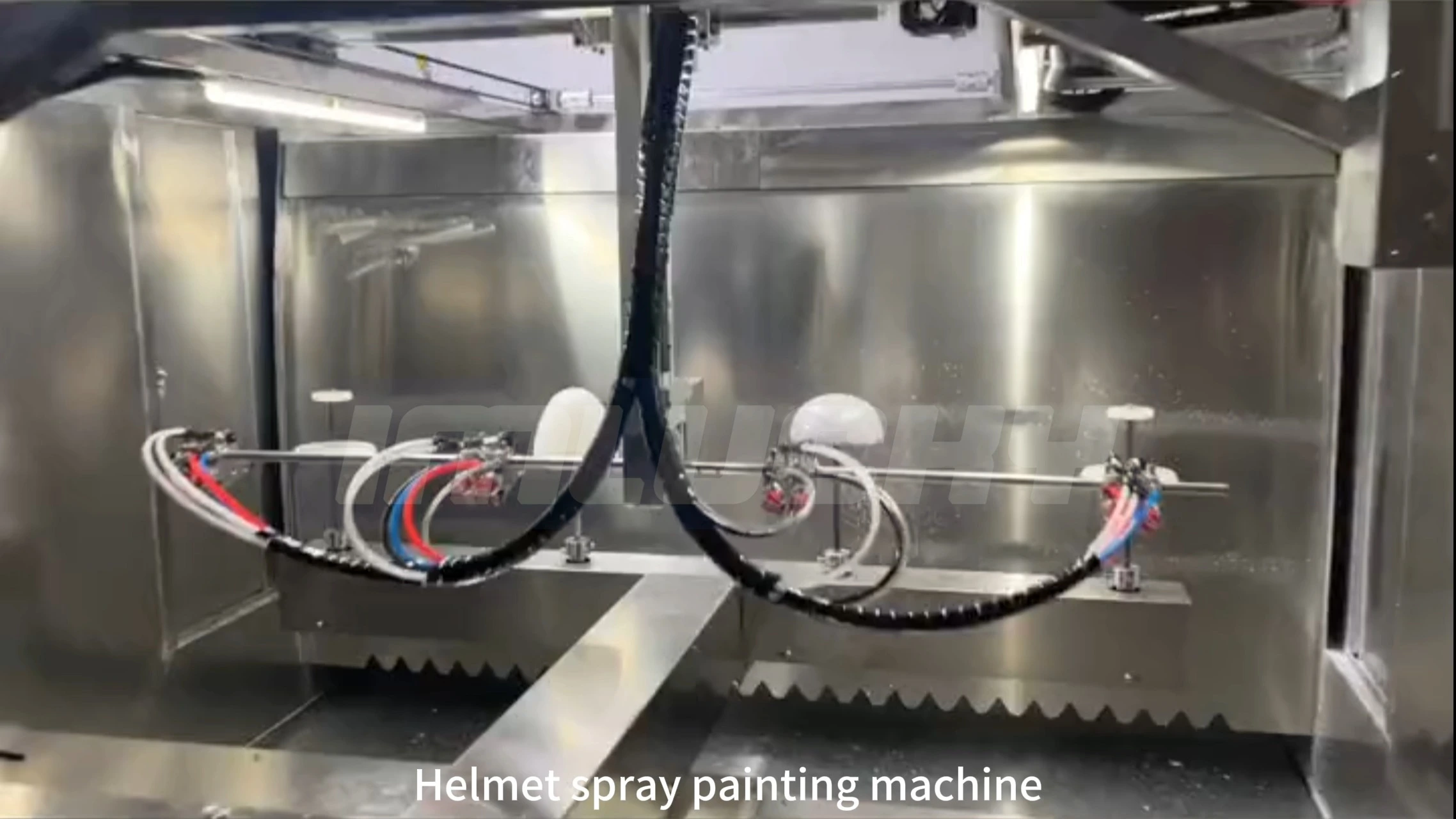

8-station automatic helmet spraying machine
Still struggling with the stability and consistency of coating quality in mass production?
The IMLUCHY reciprocating eight-station fully automatic spray coating machine is designed for spraying helmets, water cups, teapots, appliance casings, round products, and other workpieces, quickly solving all your problems. This equipment is welded from 201 stainless steel square tubing, and the machine body is also made of stainless steel, making it easy to maintain and durable. Manual loading and unloading are all that's needed, effectively saving significant labor costs.
Say goodbye to the hassle of inconsistent results from mass production or manual painting.
Painting appliance casings, teapots, and other items requires a high degree of consistency, a highly challenging task:
- Products must be uniform in shape, but color variations and paint thickness must also be highly consistent.
- Paint waste and rework are frequent, heavily reliant on skilled painters.
- Uneven paint thickness and inconsistent finished products result from over- or under-painting.
This 8-station spray coating machine provides precise, automated coating for helmets of all shapes and colors, thereby improving efficiency, consistency, and production scale.
Achieve Consistent Quality and Scale Your Production with Imluchy’s Turnkey Finishing Systems.
Our solution: An 8-station fully automatic spray painting machine with 8 spray guns and 8 stations for rapid spraying, solving efficiency and cost challenges.
This advanced fully automatic spray painting machine aims to:
- Complete loading and unloading without stopping the machine during spraying, ensuring production progress.
- Ensure consistent product coating results with PLC control.
- The machine can independently complete spraying and station rotation, reducing manual intervention.
Why Choose an 8-Station Automated Spray Painting Machine?
1. PLC touchscreen control ensures highly consistent product coating results, with an error margin of no more than ±5 micrometers, reducing paint and time waste caused by rework.
2. 8-station, 8-spray-gun automated spray painting makes it easier for technology-innovative factories to build trust and deepen partnerships with customers.
3. Mechanization and automation are future trends; adopting automation technology early helps companies integrate into the global market more quickly and establish a strong corporate image.
Applications:
This 8-station automatic spray painting machine is suitable for any product requiring complex surface treatment and mass production.
• Air conditioner housings, household appliance housings, and other everyday consumer product housings
• Wooden furniture
• Toy spot painting
• Consumer electronics housings
Technical Highlights
Voltage: 220V, 50Hz
Air Pressure: 0.5-0.7MPa
Accuracy: Repeatability ±0.1MM
Spray Gun: 1.5mm nozzle diameter, excellent atomization, finely adjustable
Frame: SUS201-40/50 T1.2 square tubing welded
Water Circulation: 1.1KW
Drain Port: 2-inch ball valve
X, Y, Z, R Axis Motors: 86 Leadshine stepper motors
Photoelectric Atomizer: Omron photoelectric atomizer
Manual Spraying vs Automatic Coating Machine
|
|
Manual Spraying |
|
|
Feature |
Manual | Automatic |
|
Consistency |
Low: Inconsistent finished product results due to variations in worker skill and condition | PLC control ensures consistent results within the same batch |
|
Efficiency |
Medium: Manual spraying leads to fatigue | High: Machines can operate 24/7 |
|
Labor Cost |
High: Skilled painters are scarce and their wages are significantly higher than machine costs | Low: Automated production allows for cost recovery in as little as three months |
|
Paint Costs |
High: Easily affected by worker skill level | Low: Computer-planned optimal paths, can be combined with a paint recycling system, saving up to 50% on paint |
Ready to Automate Your Coating Process?
Get a Free Layout Design & Cost Analysis.
Don't let finishing be your bottleneck. Contact our engineers today for a customized solution.
FAQ
Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.
